JEXtream by Franklin Access · 5G Mi-Fi · Wi-Fi 7 Tri-Band

RG3102N: compact 5G power for users on the move.

The JEXtream RG3102N packs next-generation 5G connectivity, tri-band Wi-Fi 7 capacity, wired Ethernet, and power-bank functionality into a compact Mi-Fi built for demanding mobile work. Carrier-certified, with public safety grade band support, and delivered by XGen Mobile as part of one managed connectivity program.

Wi-Fi 7 tri-band Up to 32 devices Ethernet built in 5,000 mAh power bank

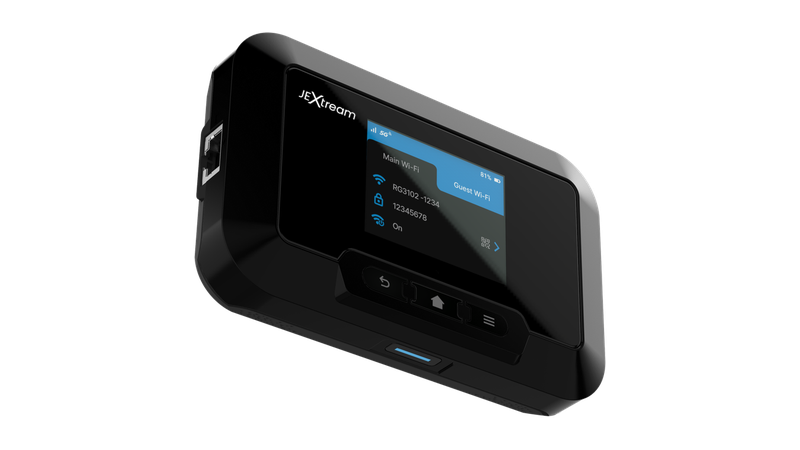

JEXtream RG3102N 5G mobile hotspot
Wi-Fi 7

Tri-band 2.4, 5, and 6 GHz with high capacity and low latency

32

Connected devices on one compact hotspot

Ethernet

Built-in wired access for local network connections

5,000 mAh

Rechargeable battery with power-bank charging for external devices

Capabilities

Built for next-generation connectivity in a portable design.

The RG3102N combines 5G performance, Wi-Fi 7 capacity, wired Ethernet support, enhanced security, and remote management for teams that work everywhere.

5G speed

Engineered for high-speed 5G connectivity for streaming, large downloads, cloud applications, and other data-intensive tasks in the field.

Wi-Fi 7 capacity

Tri-band Wi-Fi 7 across 2.4 GHz, 5 GHz, and 6 GHz keeps up to 32 devices connected with high capacity, low latency, and stable performance.

Ethernet and power bank

Built-in Ethernet provides wired local network access, and the integrated power-bank feature helps charge phones and other devices on the go.

Security and management

Enhanced security with a password-protected web admin portal, MAC address filtering, VPN pass-through, port forwarding, port filtering, and remote management.

Specifications

The details, straight from the datasheet.

Key RG3102N technical details as provided by Franklin Access. Full configuration guidance is part of every XGen deployment conversation.

Wireless

  • Wi-Fi 7 tri-band: 2.4 GHz, 5 GHz, and 6 GHz
  • 802.11 b/g/n/ac/ax/be
  • 5G bands: n2, n5, n14, n30, n48, n66, n77
  • LTE bands: B2, B4, B5, B12, B14, B29, B30, B48, B66
  • Roaming LTE: B1, B3, B7, B8, B20, B26, B28, B38, B39, B40, B41
  • UMTS: I, II, IV, V, VIII
  • Public safety grade band support (n14 and B14)

Hardware

  • Qualcomm SDX72 chipset
  • 2.4-inch TFT color display, 320x240 resolution
  • 8RX and 2TX antenna design
  • Ethernet port for local network access
  • Multi SSID and DHCP support
  • Portable, compact design for travel and mobile work

Battery, power, and control

  • 5,000 mAh rechargeable Li-Polymer battery
  • Power-bank functionality to charge external devices
  • QC 3.0 quick charge support
  • Remote management with enhanced security
  • Password-protected web admin portal
  • MAC filtering, VPN pass-through, port forwarding and filtering
Managed by XGen

Hardware is the easy part. The program is what we deliver.

XGen Mobile does not just ship boxes. Every RG3102N arrives as part of a connectivity program sized, configured, and supported for your operation.

1

Sized to your fleet

We scope how many units you need, where they go, and which service plans fit the way your teams actually use data.

2

Configured and MDM-enrolled

Devices arrive activated, secured, and enrolled in cloud-based device management so IT has visibility and control from day one.

3

Supported as one program

One solutions partner for hardware, service, and support, alongside your safety and satellite connectivity from XGen.

Put the RG3102N to work for your team.

Tell us how many people need to connect and where they work. We will size the fleet, pick the right plans, and deliver the RG3102N configured, enrolled, and ready on day one.
