JEXtream by Franklin Access · 5G Mi-Fi · Wi-Fi 7 Tri-Band

RG3100: next-generation 5G with Wi-Fi 7 for the whole crew.

The JEXtream RG3100 is a flagship 5G mobile hotspot built for demanding mobile work: tri-band Wi-Fi 7 capacity, wired Ethernet, external antenna flexibility, and a battery that doubles as a power bank. Carrier-certified 5G performance, delivered by XGen Mobile as part of one managed connectivity program.

Wi-Fi 7 tri-band Up to 32 devices Ethernet + external antennas 5,000 mAh power bank

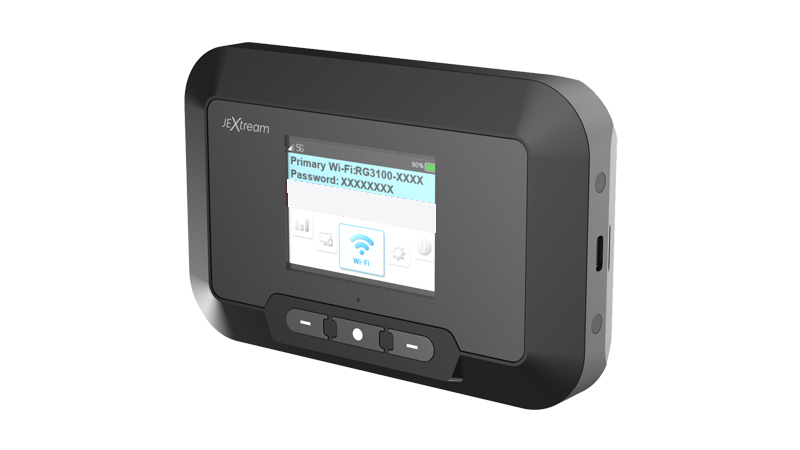

JEXtream RG3100 5G mobile hotspot
32

Connected devices on one hotspot, enough for a full crew or mobile office

Wi-Fi 7

Tri-band 2.4, 5, and 6 GHz with high capacity and low latency

5,000 mAh

Rechargeable battery with power-bank charging for external devices

5G

Carrier-certified performance with priority-capable network support

Capabilities

Built for next-generation connectivity, wherever the work goes.

The RG3100 combines high-speed 5G, Wi-Fi 7 capacity, wired Ethernet, external antenna flexibility, and remote management in one portable design.

5G speed

Engineered for high-speed 5G connectivity that keeps streaming, large file transfers, cloud applications, and other data-intensive work moving.

Wi-Fi 7 capacity

Tri-band Wi-Fi 7 across 2.4 GHz, 5 GHz, and 6 GHz delivers high capacity, low latency, and stable performance for up to 32 devices at once.

Ethernet and antenna ready

Built-in Ethernet gives you wired local network access, while 2x TS-9 external antenna connectors add signal flexibility in tough coverage spots.

Security and management

Enhanced security with a password-protected web admin portal, MAC address filtering, VPN pass-through, Multi SSID, DHCP, and remote management.

Specifications

The details, straight from the datasheet.

Key RG3100 technical details as provided by Franklin Access. Full configuration guidance is part of every XGen deployment conversation.

Wireless

  • Wi-Fi 7 tri-band: 2.4 GHz, 5 GHz, and 6 GHz
  • 802.11 b/g/n/ac/ax/be
  • 5G bands: n25, n41, n48, n66, n71, n77
  • LTE bands: B2, B4, B5, B12, B25, B26, B41, B48, B66, B71
  • Roaming 5G: n28, n66, n78
  • Roaming LTE: B1, B3, B7, B8, B13, B20, B28, B38, B39, B40
  • UMTS: B1, B2, B4, B5, B8

Hardware

  • Qualcomm SDX72 chipset
  • 2.4-inch TFT color display, 320x240 resolution
  • 8RX and 2TX antenna design
  • 2x TS-9 external antenna connectors
  • Ethernet port for local network access
  • Portable, compact design for travel and field work

Battery, power, and control

  • 5,000 mAh rechargeable Li-Polymer battery
  • Power-bank functionality to charge external devices
  • QC 3.0 quick charge support
  • Remote management and enhanced security
  • Password-protected web admin portal
  • Multi SSID, DHCP, MAC filtering, VPN pass-through
Managed by XGen

Hardware is the easy part. The program is what we deliver.

XGen Mobile does not just ship boxes. Every RG3100 arrives as part of a connectivity program sized, configured, and supported for your operation.

1

Sized to your fleet

We scope how many units you need, where they go, and which service plans fit the way your teams actually use data.

2

Configured and MDM-enrolled

Devices arrive activated, secured, and enrolled in cloud-based device management so IT has visibility and control from day one.

3

Supported as one program

One solutions partner for hardware, service, and support, alongside your safety and satellite connectivity from XGen.

Put the RG3100 to work for your team.

Tell us how many people need to connect and where they work. We will size the fleet, pick the right plans, and deliver the RG3100 configured, enrolled, and ready on day one.
